433MHz RF Wireless Switch Controller for Remote Control DIY …, Kota Kinabalu

⭐⭐⭐ Receiver parameters:
- Voltage: 100~250V, 50-60Hz
- Current: 10A
- Operating frequency: 433.92 MHz
- Size: 72 x 38 x 26 mm
- Mode: ASK, EV 1527

⭐⭐⭐ Wireless Switch Parameters:
- Operating voltage: DC 12V (12V 23A battery)
- Operating frequency: 433.92 MHz
- Transmitting power: <10 mW
- Modulation: ASK, EV 1527

⭐⭐⭐ Wireless Round Switch Parameters:
- Operating voltage: DC 3V (CR2032 3V battery)
- Operating frequency: 433.92 MHz
- Modulation: ASK, EV 1527
- Size: 86 x 86 x 13 mm

Advantages:
⭐⭐⭐ Remote control distance: 20–100 m
⭐ Control 1 light from up to 15 different locations
⭐ No more fumbling for switches at night
⭐ Care for family members
⭐ Never get up to turn off lights in winter

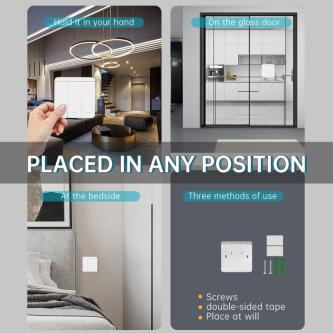

⭐ Flexible placement with multiple fixing methods

⭐⭐ Pairing:
- Factory-paired; no setup needed
- Learning pairing: Press and hold the Receiver pairing key for 3 seconds; indicator flashes. Press the remote 2x; light toggles—pairing done.
- Clearing pairing: Long-press the Receiver pairing key for 10 seconds; light flashes twice to clear.

⭐⭐⭐⭐⭐ Note:
- Install with power off; do not touch antenna during power-on.
- Use a professional electrician; operate only with power off and after testing.
- Operate under professional guidance. ⭐⭐⭐ Parameter Penerima:
- Voltan: 100~250V, 50-60Hz
- Arus: 10A
- Frekuensi operasi: 433.92 MHz
- Saiz: 72 x 38 x 26 mm
- Mod: ASK, EV 1527

⭐⭐⭐ Parameter Suis Tanpa Wayar:
- Voltan operasi: DC 12V (bateri 12V 23A)
- Frekuensi operasi: 433.92 MHz
- Kuasa penghantaran: <10 mW
- Modulasi: ASK, EV 1527

⭐⭐⭐ Parameter Suis Bulat Tanpa Wayar:
- Voltan operasi: DC 3V (bateri CR2032 3V)
- Frekuensi operasi: 433.92 MHz
- Modulasi: ASK, EV 1527
- Saiz: 86 x 86 x 13 mm

Kelebihan:
⭐⭐⭐ Jarak kawalan jauh: 20–100 m
⭐ Kawalan 1 lampu dari 15 lokasi berbeza
⭐ Tiada lagi meraba suis pada waktu malam
⭐ Penjagaan ahli keluarga
⭐ Tidak perlu bangun untuk mematikan lampu pada musim sejuk
⭐ Penempatan fleksibel dengan pelbagai kaedah pemasangan

⭐⭐ Padanan:
- Dipadankan kilang; tidak perlu tetapan
- Padanan pembelajaran: Tekan dan tahan butang padanan penerima selama 3 saat; penunjuk berkelip. Tekan alat jauh 2x; lampu bertukar—padanan selesai.
- Padanan dipadam: Tekan lama butang padanan penerima selama 10 saat; lampu berkelip dua kali untuk padam.

⭐⭐⭐⭐⭐ Nota:
- Pasang dengan kuasa dimatikan; jangan sentuh antena semasa kuasa hidup.
- Gunakan juruelektrik profesional; hanya operasi dengan kuasa dimatikan dan selepas ujian.
- Operasi di bawah bimbingan profesional.
