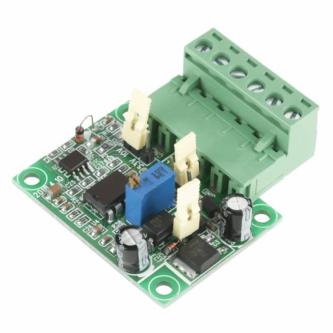

The following is a detailed introduction of the product, remember to read it carefully and place an order to avoid misunderstandingThis F/V Module Can put 0-10Khz frequency pulse signal into 0-10V Analog voltage signal.
Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions.
Input pulse level is 3.3v, 5V, 24V. There are jump pin on the board for selection, without any resistance.
Power input has anti- reverse connect function, safe to use.
Output voltage can be minute adjustment, can adjust the potentiometer to calibration the frequency and voltage Linear relationship.

Features:
lf matched with the encoder, the encoder constant speed continues to turn more than 0.5 seconds.
lf you need matched with PLC, support of NPN. It must be ground.
Signal input with coupling isolation, to ensure anti-jamming capability.
Frequency - to - voltage module, response time is about 0.3-0.5 seconds.
The input power supply voltage range is 12-30VDC, with a wide voltage DC power supply. There are 2 power supply modes: 12V power supply or 15-30VDC power supply, which can be selected with a jumper pin.
In 12V level, the power supply cannot use 12VDC, and must use a power supply of at least 15VDC or higher.
In 24V level, the power supply must use 24VDC.

Specifications:
Power supply: 12-30VDC
Input frequency:0-10Khz
Output voltage: 0-10V
Response time: 0.3-0.5 seconds
Output current: 5MA
Weight: 18g
Color: As picture shown
Size: 5*4.4*1.6cm(1.97*1.73*0.63in)

Wiring Identification:
V+: Positive power input
GND: Negative power input (common ground)
PUL-: Negative pulse frequency input, connects to signal pulse in positive common mode, connects to ground in negative common mode
PUL+: Positive pulse frequency input, connects to positive power in positive common mode, connects to signal pulse in negative common mode
GND: Negative voltage output (ground connection)
OUT: Analog voltage output

Correspondence:
When the resistor equipped on the frequency-voltage conversion module is adjusted to the middle position, the frequency-voltage correspondence is as follows: 100Hz = 0.1V, with an accuracy of 1%.

Package includes:
1 x Frequency to Voltage Converter
